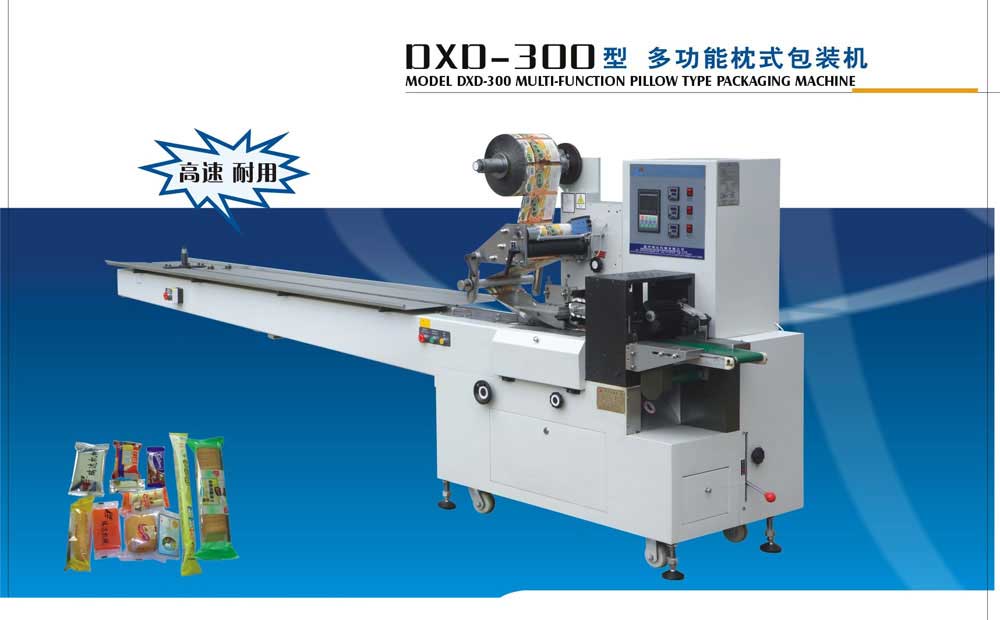

Packaging machine Solutions

Production capacity :30-140 (single-handedly),80-290 (pole),80-290 (Mito)

Various shapes square, rectangular, round, oval, flat circular, etc.: packaging shape
Packing range:
1 bag length :170-400mm ,80-300mm ,60-100mm
2 Width :35-100mm
3 height :20-80mm ,3-40mm ,2-30mm
Film width (maximum): 300mm
Packaging film Diameter: ψ350mm
Total power: 3kw
Power: 220v 50-60HZ
Total weight: 900kg
Dimensions: 4700 * 850 * 1550
Packing speed :100-300 packs / min

Model ZP-100 Flow Pack

Dual frequency control
PLC touch screen
Packing speed: 35-230bag/min
Bag size: (L)65-160mm   (W)35-100mm   (H)5-35mm
Film width:  90-220mm
Packing materials: OPP/CPP、PT/PE、KOP/CPP、ALU-FOIL
Dimension:  (L)4000* (W)920*? (H)1600
Heating Power:  2.1kw
Motor Power: 0.55+0.75kw
Total Power: 3.4kw
Weight:  550kg


Model ZP-320 Flow Pack

Packing speed: 35-230bag/min
Bag size: (L)90-240mm (W)30-130mm (H)5-40mm
Film width: 80-300mm
Packing materials: OPP/CPP、PT/PE、KOP/CPP、ALU-FOIL
Dimension:  (L)4000* (W)950* (H)1600
Heating Power: 2.1kw
Moto Power: 0.55+0.75kw
Total Power:  3.4kw
Weight:  600kg

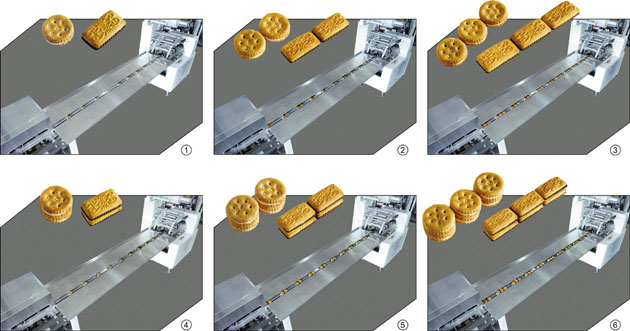

Package Type


Sandwich packaging samples
